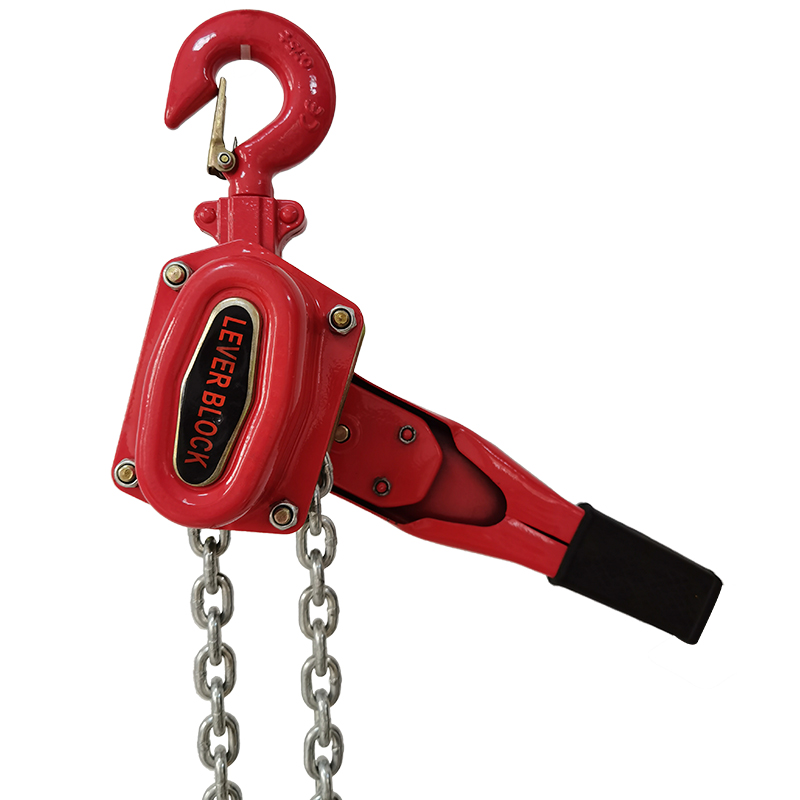

HSH Lever block

HSH lever block is a kind of highly efficient and versatile hand operated hoisting appliance. The HSH lever block is capable of being widely applied in shipbuilding, power plants, transport, construction site, mines, post and telecommunication for installing machines,lifting goods and dragging loads, etc. HSH lever block is particularly used in the narrow places, the open air and overhead places for pulling and stretching work at any angle. Our experienced engineers can design and manufacture HSH lever blocks tailored to you requirements, ensuring optimal performance and efficiency. We can offer free replacement services for core components of our lever blocks. If you happen to be in need of this lever block, welcome to send an email for consultation.

Send email to us Download as PDF

Product Detail

Product Tags

product description

The main parts of the HSH lever block are made of superior steel, which has the following characteristics in design and service:

1.safe,reliable and durable in use.

2.excellent performance and minimum maintenance.

3.small volume,light weight and portable in size.

4.light hand-pull and high efficiency.

5.advanced structure and attracting appearance.

main parameter

Model	HSH-0.75	HSH-1.5	HSH-3	HSH-6	HSH-9
Capacity(t)	0.75	1.5	3	6	9
Standard lifting height(m)	1.5	1.5	1.5	1.5	1.5
Tested load capacity(t)	11.0	22.5	37.5	75.0	112.5
Pulling force to lift full load(N)	140	220	320	340	360
NO. of load chain	1	1	1	2	3
Load chain diameter (mm)	6	8	10	10	10
Net weight(kg)	7.5	11.5	21	31.5	47
Packing measurement(LWH) (cm)	35.51416.5	46.515.519	511921.5	532221.5	823221.5
Extra weight per meter of extra lifting height(kg)	0.8	1.4	2.2	4.4	6.6

product details

Alloy steel thickened integrated cover
protects the internal structure and operates stably, is durable and has a longer service life.

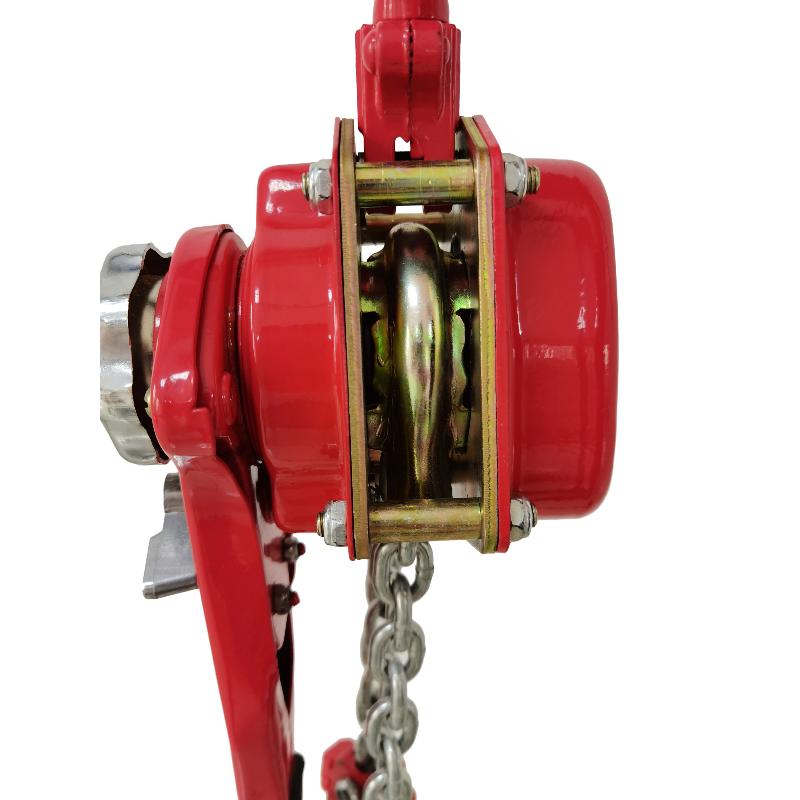

Integrated through-type central long axis
Integrated forged, no welding, wear-resistant and high hardness

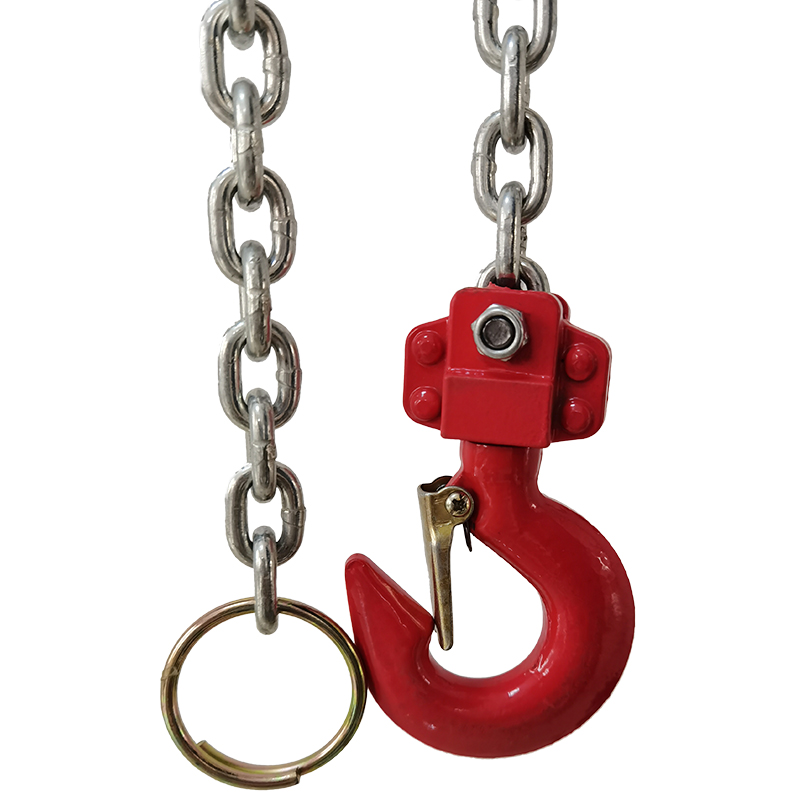

G80 manganese steel chain
high strength, 4 times the breaking force

Stainless steel quenched gear set:
high hardness and wear resistance; precise meshing between gears, efficient transmission, meeting long-term workload

Ratchet double brake system
double pawl brake system, effective emergency braking and safer

Anti-slip rubberized handle
rubber synthetic, ergonomic design, comfortable and anti-slip
